Plockmatic LCT3500

Plockmatic LCT3500

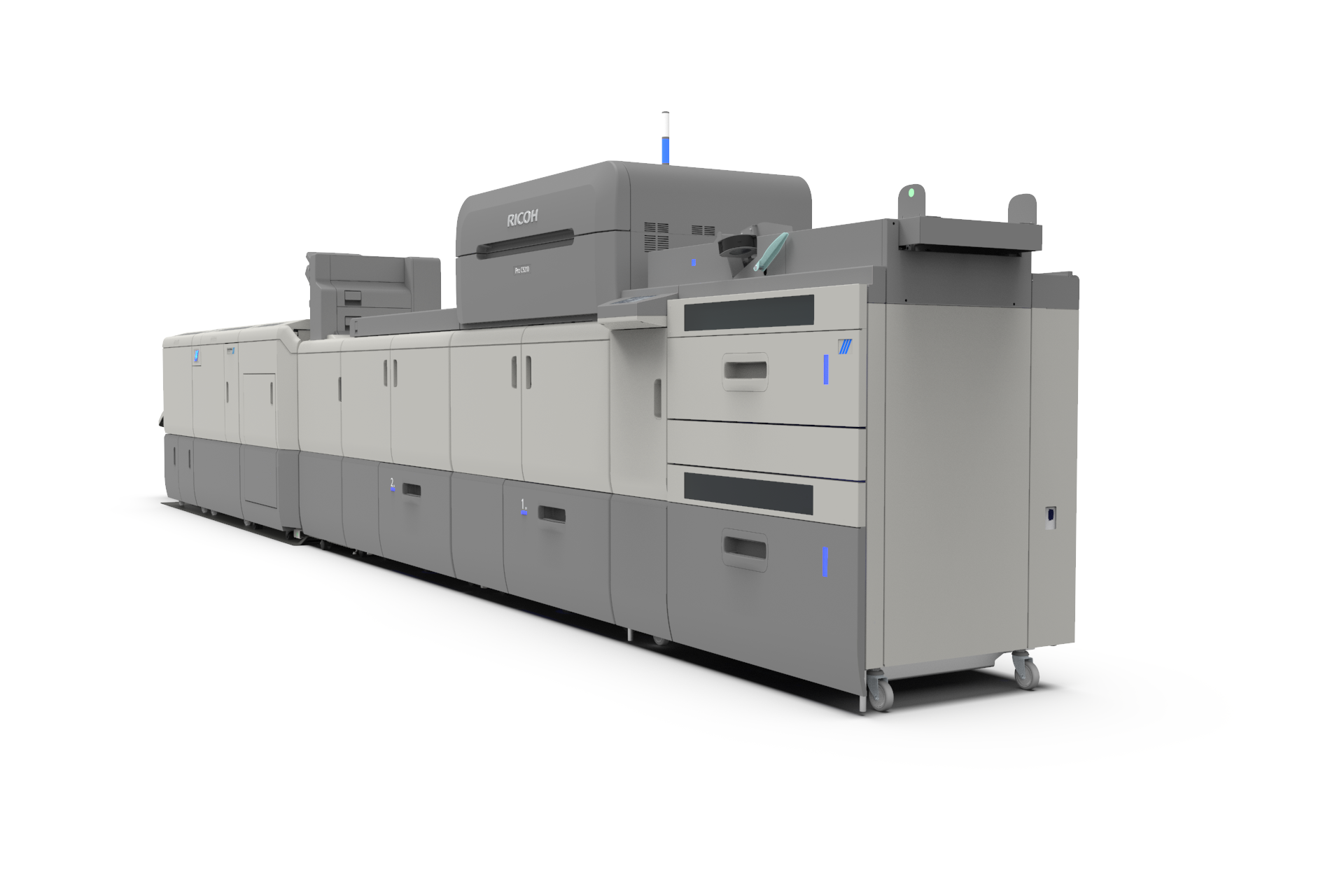

The all new Plockmatic LCT3500 Large Capacity Tray is the first long sheet dual tray feeder for Ricoh production printing systems. Print providers are looking to expand the range of formats they can offer their customers.

They also want to take advantage of the new generation of expanded format booklet makers from Plockmatic. The Plockmatic LCT3500 handles long sheets as easily as “standard” sizes. Oversize printing has gone “mainstream.”


It begins with a blank piece of paper.

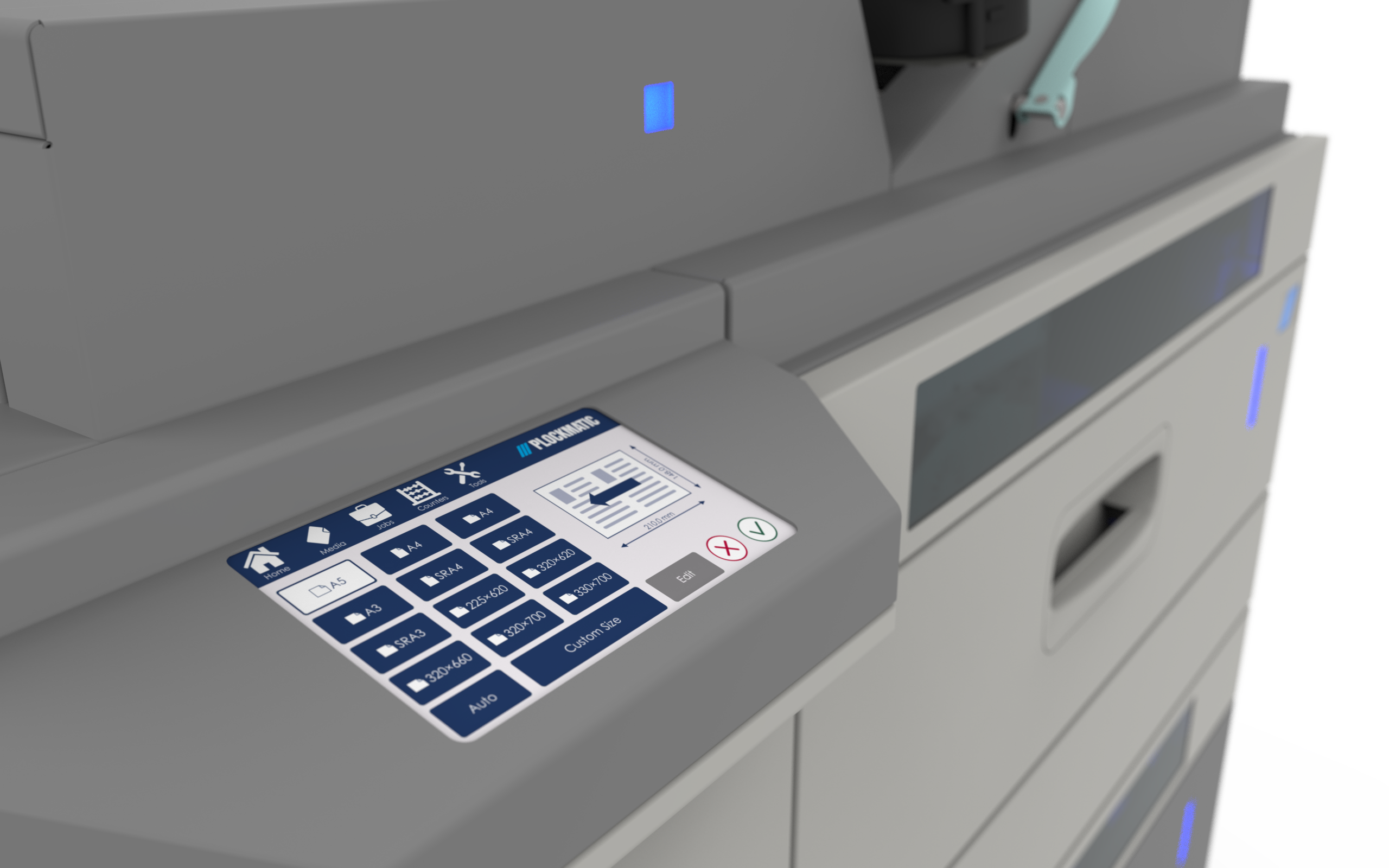

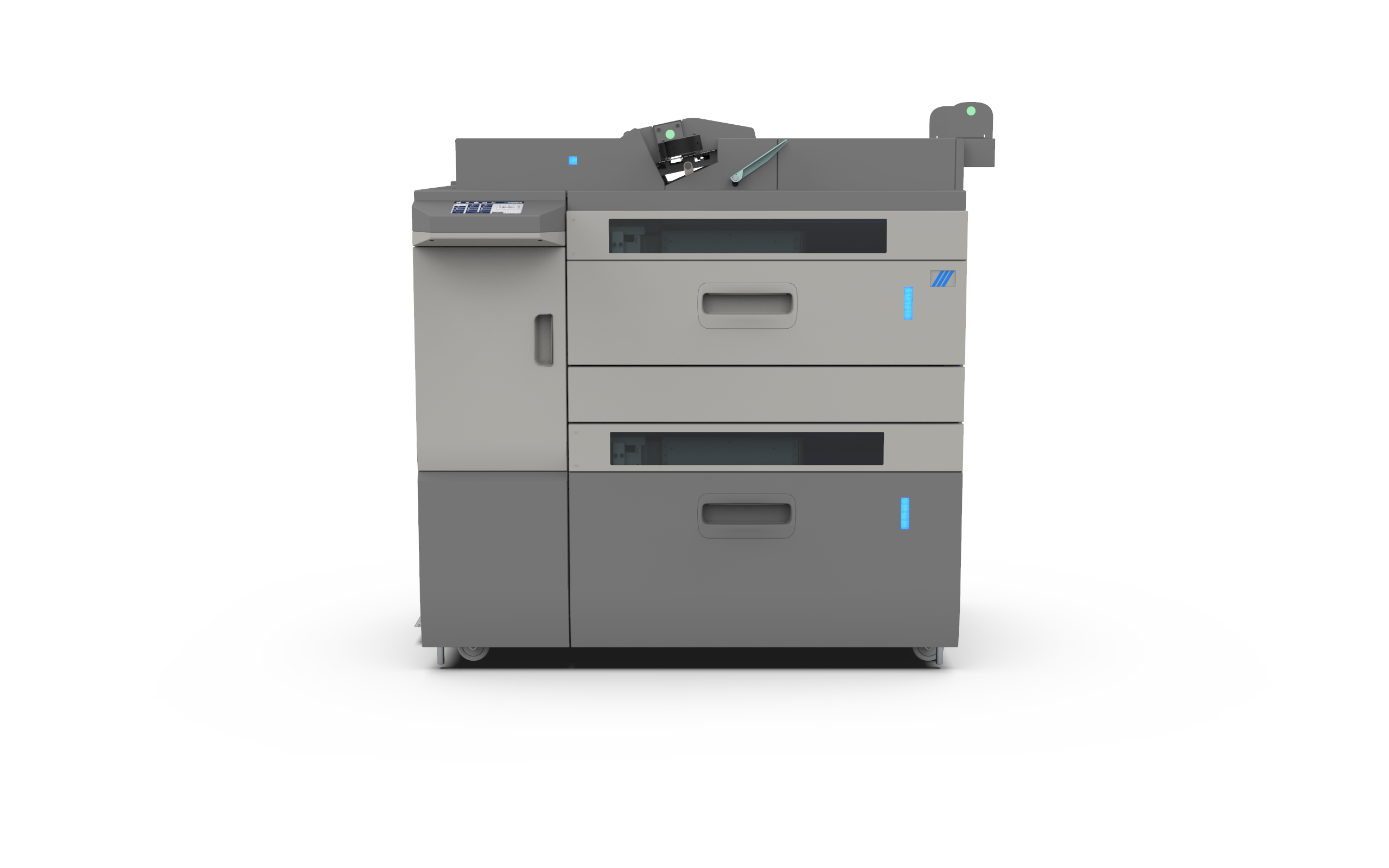

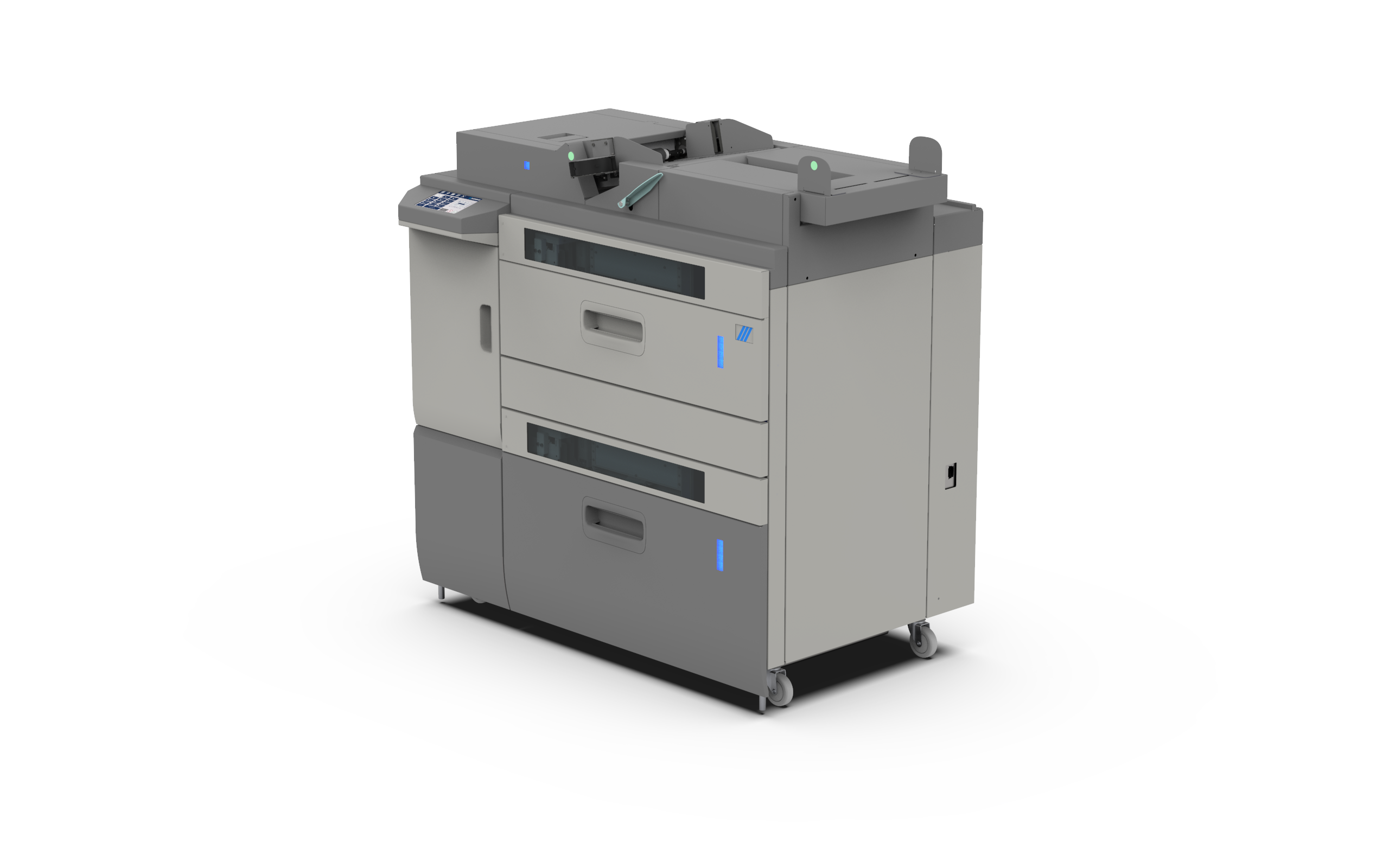

The feeder comes standard with two high capacity trays with a total capacity of 3500 sheets in lengths up to 700 mm. The drawers are vacuum fed with our unique Adaptive Fan Control to support up to 400gsm media and a new Sheet Size Detection feature supports all standard formats for automatic setup.


Long sheet, mixed media printing just became possible.

The printed book needs to work harder and smarter than ever before. Digital long sheet applications like landscape/oversize booklets and three or four-panel brochures are a common customer requirement. The Plockmatic LCT3500 makes it possible to print these applications in quantity. And multiples pick points allow different oversize media to be combined in a single job.


Feeding long sheets. And very long sheets.

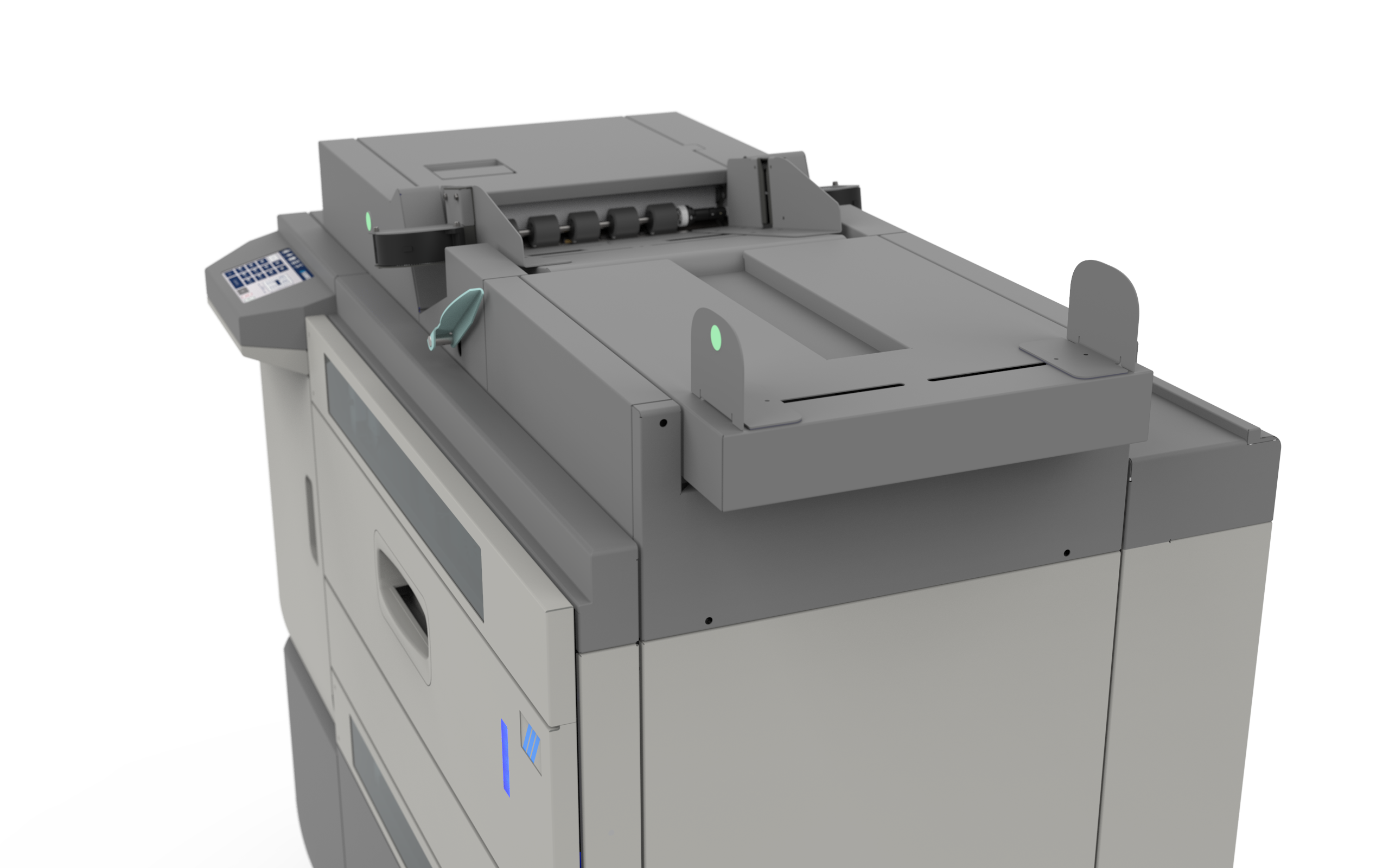

The optional LSM Long Sheet Module provides a third pick point and is capable of feeding banner sheets up to 1260 mm long.


For more information, download our brochure or visit www.ricoh.com

[contact-form-7 404 "Not Found"]

Plockmatic LCT3500

Paper Size Min. Ricoh Pro™ C7200s Series
120x210mm / 4.72”x8.3”
Paper Size Min. Ricoh Pro™ C9200 Series
120x487.8mm / 4.72”x19.2”
Paper Size Max.
330x700mm / 4.72"x19.2”
Stock Range
65 - 350gsm / 18 lb. Bond - 130 lb. Cover (up to 400gsm / 150 lb. Cover dependent on paper type and quality)
Paper Types
Plain, Index, Coated, Recycled paper
No. of Trays
Dual (Vacuum)
Tray Capacity
3500 sheets of 80gsm / 22 lb. Bond plain paper (2 x 1750 sheets)
Double Feed Detection
Optical and ultrasonic sensors, two independent systems
Auto Sheet Size Detection
Yes, on standard paper sizes
Tray Status Indicators
Individual tray LEDs in segments of four indicating paper amount and status
Compatible Print Engines
Ricoh Pro™ C7200s Series
Ricoh Pro™ C9200 Series

LSM Long Sheet Module Option

Paper Size Min. Ricoh Pro™ C7200s Series
120x210mm / 4.72”x8.3”
Paper Size Min. Ricoh Pro™ C9200 Series
120x487.8mm / 4.72”x19.2”
Paper Size Max.
330x1260mm / 13.2”x49.6”
Stock Range
80 - 400gsm / 18 lb. Bond - 150 lb. Cover (up to 450gsm / 166 lb. Cover dependent on paper type and quality)
Paper Types
Plain, Index, Coated, Recycled paper
No. of Trays
Single, mounted on top of LCT3500 (Air/Friction Hybrid)
Tray Capacity
700 sheets of 80gsm / 22 lb. Bond plain paper
Double Feed Detection
Optical sensors
Tray Status Indicators
Single tray LED indicating activity
