Plockmatic Multi-Purpose Stacker (MPS) for Konica Minolta

Plockmatic Multi-Purpose Stacker (MPS) for Konica Minolta

The Plockmatic MPS Multi-Purpose Stacker is a flexible, cost-effective stacking solution designed to attach to a selection of Konica Minolta production printing systems. The simple docking/undocking system enables easy transportation while the motorized Stacking Table makes it easy to lift and manage heavy paper stacks.

The MPS makes printing long sheets as easy as standard sizes. It can also stack standard paper sizes. It offers a unique combination of features (stacking, lifting, and transporting) in a single product that cannot be found elsewhere.


Cost-Effective Stacking for Long Sheet Applications

Conventional stackers can only handle a small number of long sheets. The MPS supports true production quantities. It also allows for thicker paper stock up to 500 gsm. Some key benefits include:

  • Facilitating paper stacking and handling during the finishing process
  • Makes it easy for operators to handle longer sheets
  • Enables easy transportation of paper stacks to the next step in the finishing process
Stack up to 1260 mm / 49.6″ long sheets.

Optimizing Production Workflow

The MPS provides the link between the printer and the finishing device that will create the complete application, helping digital print providers turn over-sized sheets into profitable applications. Sheets fed into the MPS can easily be moved to a Morgana AutoCut Pro or other finishing devices.

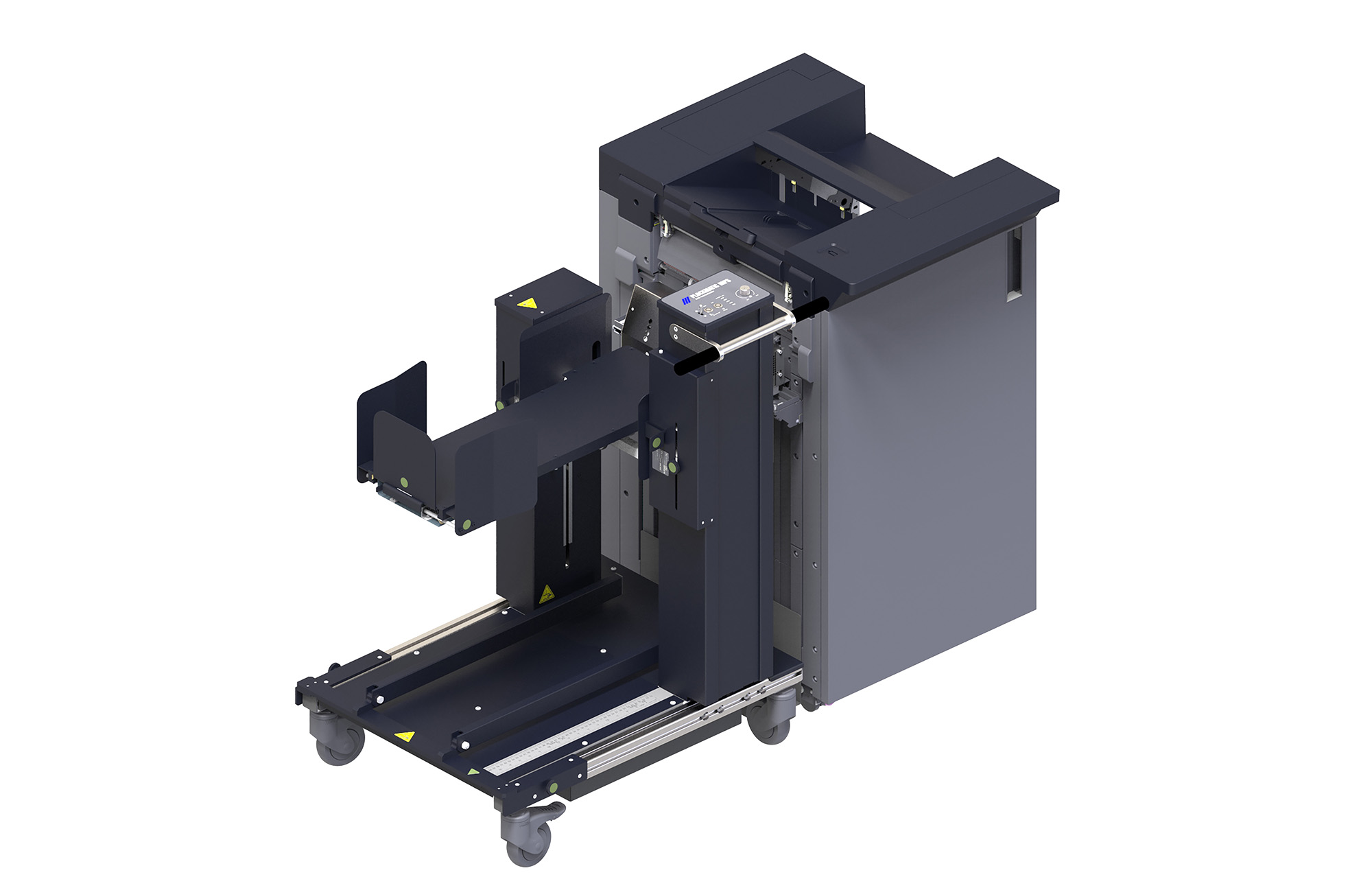

The Plockmatic Multi-Purpose Stacker
The AutoCut Pro attached to the AutoFold Pro

Working Together

The MPS is developed to fully integrate into Konica Minolta Printing systems with the ability to automatically pause and resume print jobs depending on stacker status.

Enjoy a smoother workflow with less downtime.

For more information, download our brochure or visit www.konicaminolta.com

Basic Specification

Max. Stack Height
325mm / 12.8" (FS-532)
325mm / 12.8" (OT-510)
135mm / 5.3" (over 650 mm long sheets)
Max. Stack Weight
40 kg / 88.2 lbs

Media Specification

Standard Paper Size Support
A4 LEF, A3, 8.5x11" LEF, 11x17", 12x18", SRA3, SRA4 LEF, 9x12" LEF
Custom Size Min. Width
279.4 mm / 11”
Custom Size Max. Width
330 mm / 13”
Custom Size Min. Length
210 mm / 8.27"
Custom Size Max. Length
1260 mm / 49.6"
Paper Weight Support
150-500 gsm
*Paper under 150 gsm may be stackable depending on output characteristics of upsteam device
Supported Media
Plain paper, Index paper*, coated paper, Recycled paper, Offset paper, punched paper
* Index paper needs to be fed with tab side at the trailing edge

Technical Specification

Dimensions (L x D x H)
900 x 680 x 1060 mm / 35.4” x 26.8” x 41.8”
*Extends to 1450 mm / 57" length for extra long sheets

Compatibility

Compatible Interfaces
Konica Minolta FS-532
Konica Minolta OT-510
Compatible Print Engines
AccurioPress C3080 Series
AccurioPress C6100 Series
