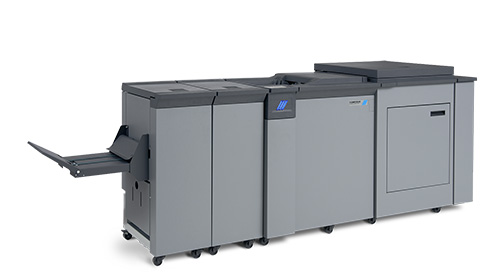

Plockmatic SD-500 and SD-350

Plockmatic SD-500 and SD-350

The new Plockmatic SD-500/350 is an inline booklet making solution with specifications unmatched in the mid-range.

The Plockmatic SD-500/350 is a modular inline booklet making solution for centralized reproduction departments and commercial print providers – large and small. Customers can choose from a range of cost-effective options to support their application requirements. The system is packed with a host of unique technologies that deliver finished books with quality to match today’s printing systems.

Customers are demanding more media versatility from digital print. The Plockmatic SD-500/350 is designed from the ground up to work with today’s coated, uncoated and textured paper stocks.

Plockmatic works closely with print engine manufacturers and workflow partners to ensure the closest possible integration of the booklet making system. This supports ease of use and allows operators of different skill levels to get the most out of the entire printing system.


Simplicity.

Operators are now guided through job setup with detailed graphics that can provide step-by-step guidance. Getting professional results using all the system’s features has never been easier.

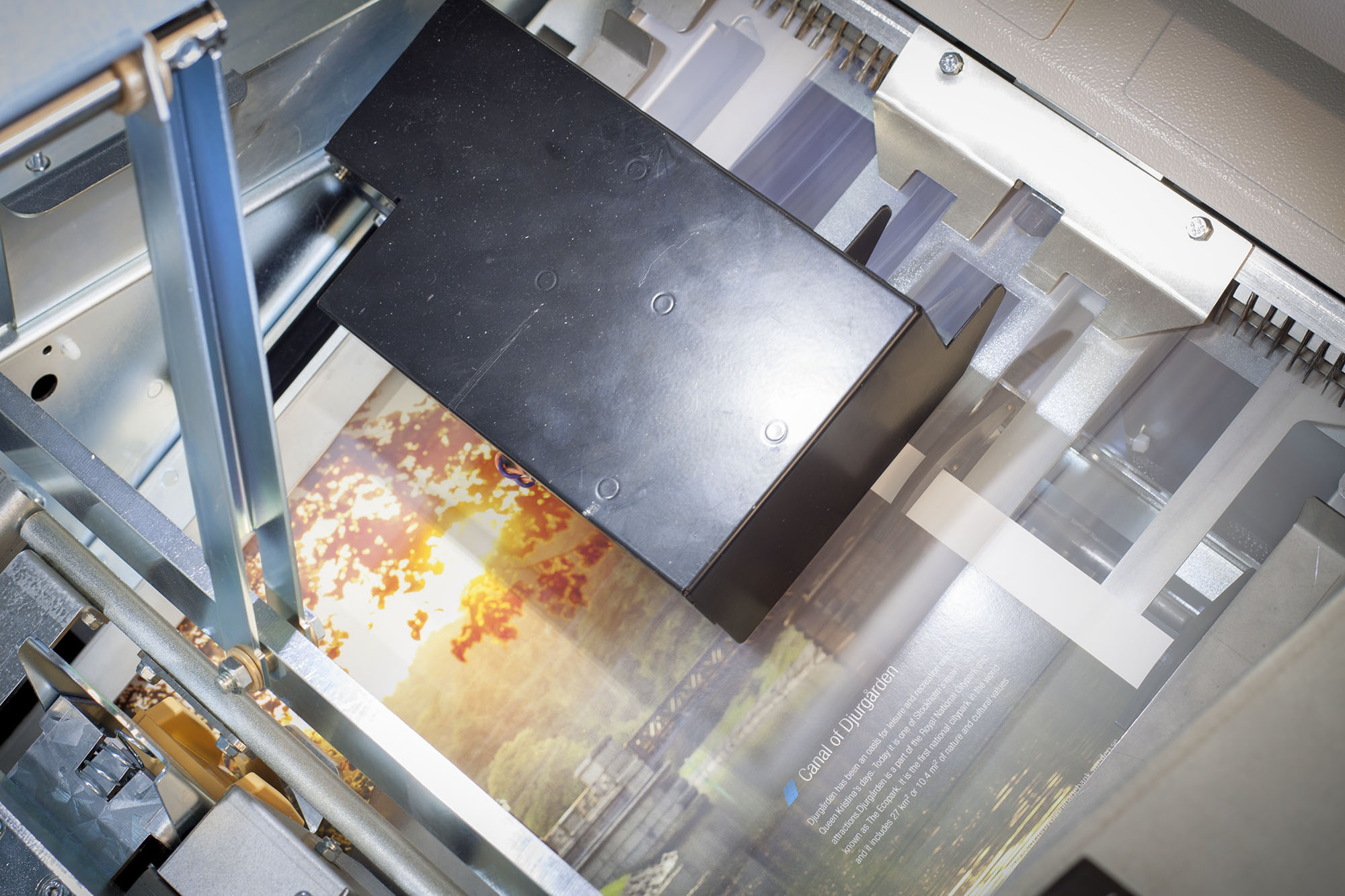

The Need for Speed.

Plockmatic booklet makers takes the mid-range print finishing to a new level of performance. A system coupled with the Plockmatic RCT module enables sheets to be printed in both a long and short edge orientation. This maximizes productivity and takes full advantage of the print engine’s potential.


Up to 50 sheet capacity.

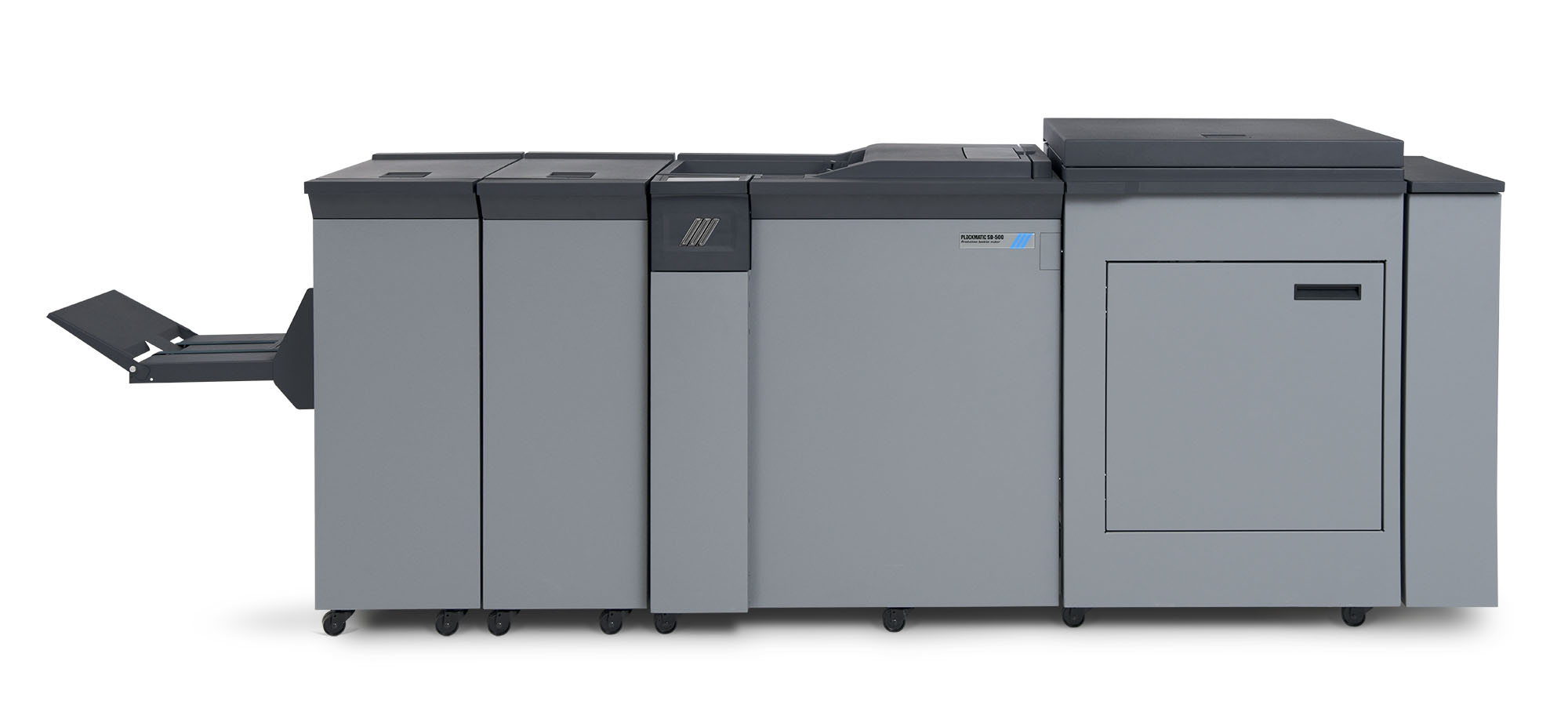

The SD-350 is capable of 35 sheets creating 140 page booklets.

The SD-500 can staple and fold up to 50 sheets which creates booklets of up to 200 pages.


Flexibility.

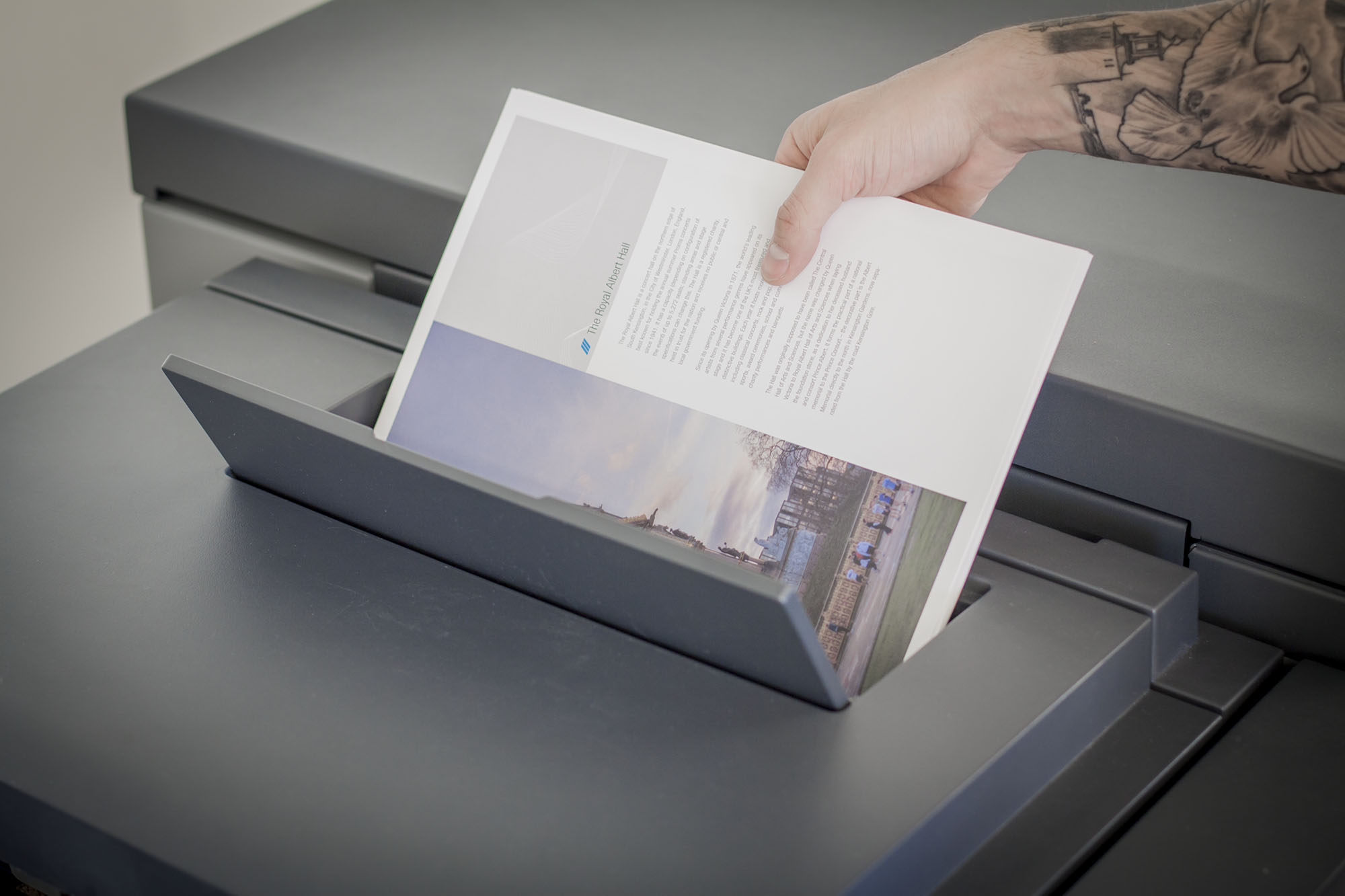

Output from any other print device can be manually fed through the booklet maker, face trim and Bookfold modules. This improves flexibility by enabling output printed on other devices to be interleaved.


BookFold. More than just a fold.

The BookFold module adds the finishing touch with a square folded edge and printable spine. This gives booklets the professional look of a perfect bound book.


For more information, download our brochure or visit www.konicaminolta.com

Booklet Maker

Speed
Maintain engine speed*
*Actual speed depends on number of sheets per booklet
Standard Paper Sizes
A4, A3, B4, 8.5x11”, 8.5x14”, 9x12”, 11x17”, 12x18”, SRA4, SRA3, Custom size possible
Paper Size (Min)
Width 206 mm / 8.1” Length 275 mm / 10.8”
Paper Size (Max)
Width 320 mm / 12.6” Length 457.2 mm / 18”
Paper Weight uncoated (Min)
64 gsm / 16 lb Bond
Paper Weight coated (Min)
105 gsm / 28 lb Bond
Paper Weight (Max)
350 gsm / 110 lb Cover
Set size (stapled folding)
2-50 Sheets SD-500, 2-35 Sheets SD-350 (80 gsm / 20 lb Bond)
Set size (non stapled folding)
1-2 sheets
Off-line Use
Yes
Power Source
100-230V 50-60Hz
Power consumption
250W
Noise emission
62dB

Rotate, Crease, Bleed Trimmer module

Paper Sizes
Same as Booklet Maker
Minimum trimming
5+5 = 10 mm / 0.39”
Maximum trimming
30+30 = 60 mm / 2.36”
Asymmetrical trimming
Yes
Power Source
100-230V 50-60Hz

Face Trimmer module

Paper Sizes
Same as Booklet Maker
Minimum trimming
1 mm / (0.0394”)*
*When trimming SRA3 (450 mm) Booklets minimum trimming is 5 mm, when trimming 18" Booklets minimum trimming is 9 mm.
Maximum trimming
25 mm / (0.984”)
Power Source
From Booklet Maker
The Trimmer support “multi-cut” operation when hand feeding or in feeder mode with the CF. This allows customers to cut the length of the book down to 105 mm/4.13" from a larger sheet size.

BookFold module

Paper Sizes
Same as Booklet Maker
Set size (stapled folding)
Same as Booklet Maker
Power Source
From Booklet Maker

Cover Feeder

Paper Sizes
Same as Booklet Maker
Paper Weight (Min)
64 gsm / 18 lb Bond
Paper Weight (Max)
250 gsm / 93 lb Cover
Cover Feeder Capacity
20 mm / 0.79”: Approx. 200 sheets of 80 gsm paper or approx. 200 sheets 20 lb Bond paper
Power Source
From Booklet Maker
The Cover Feeder dimensions are included in the Booklet maker dimensions and will not add to the footprint.

High Capacity Belt Stacker

Stacking Capacity
Up to 1000 A4 / 8.5x11” sized booklets of 4 sheets

Compatibility Color Presses

Konica Minolta Bizhub PRESS C1085 / C1100
Konica Minolta AccurioPress C6085 / C6100
Konica Minolta AccurioPress C2060 / C2070 / C2070P

Compatibility Monochrome Presses

Konica Minolta AccurioPress C3070 / C3080 / C3080P
Konica Minolta AccurioPress C2060 / C2070 / C2070P
Konica Minolta AccurioPress C6085 / C6100
Konica Minolta Bizhub PRESS C1085 / C1100
Konica Minolta AccurioPress 6120 / 6136 / 6136P
Konica Minolta Bizhub PRESS 1052 / 1052e
Konica Minolta Bizhub PRESS 1250 / 1250e / 1250eP / 1250P / 2250P
