PL450e and PL435e – a Versatile Booklet Maker for RISO

PL450e and PL435e – a Versatile Booklet Maker for RISO

High Volume

Superior Quality

Continuous Production

Introducing  PL450e/435e:  a versatile booklet maker designed to work with the RISO Valezus T1200 production printer. It delivers booklets of exceptional quality, corner and edge stapling capability with the ability to feed the new long printed sheets to produce a variety of applications.

The booklet maker standard version includes a book stacker that can be folded down to allow virtually unlimited stacking capacity

This product was exhibited as a technology demonstration at Drupa 2024. The launch date of this product is yet to be determined.

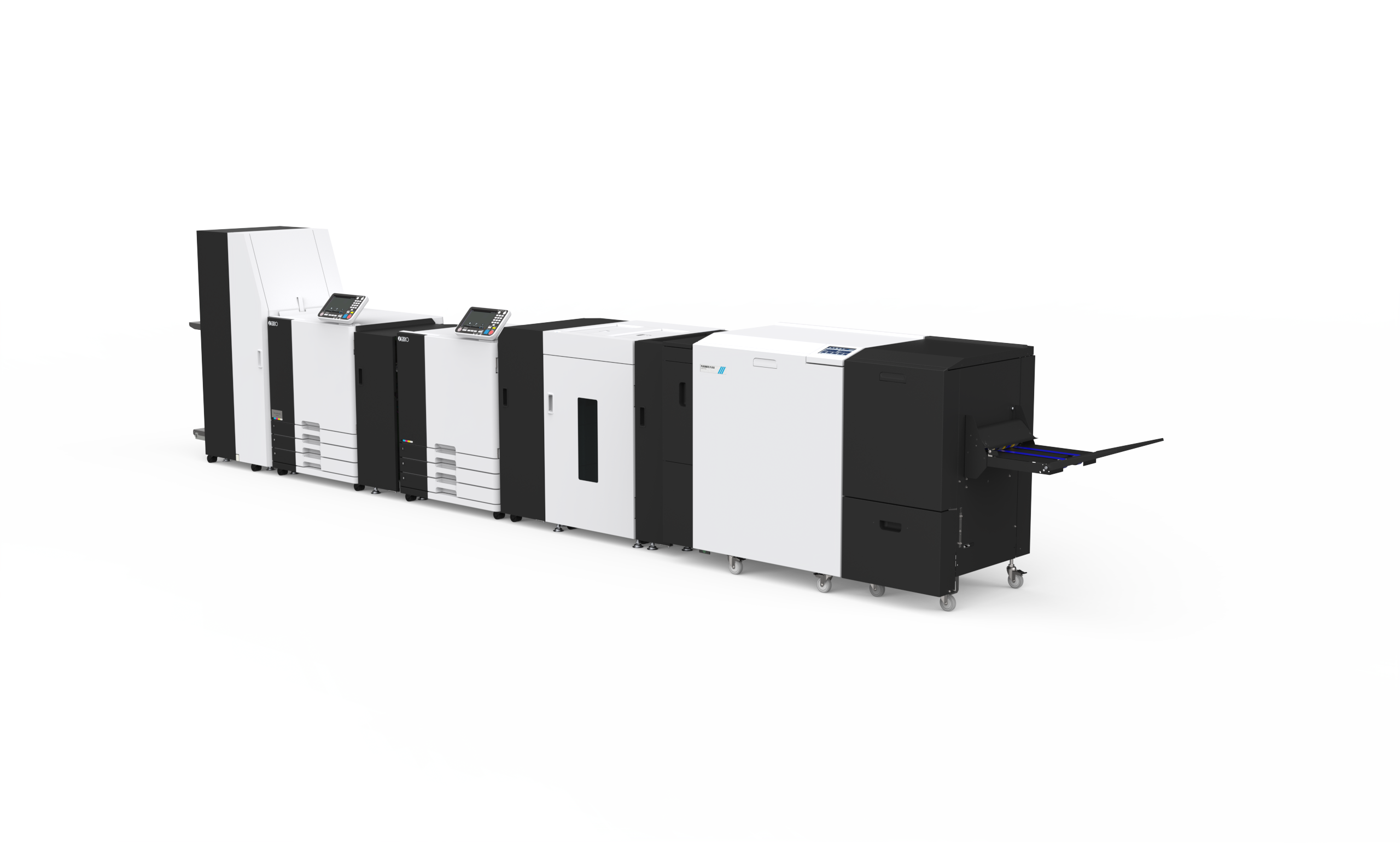

Product photo PL450e and PL435e

Key Features

  • Square folded booklets from A6 to A4
  • Corner stapled documents in portrait A4
  • Edge stapled documents in portrait and landscape A4
  • Up to 140 or 200-page booklet capacity
  • Supports up to 660mm long sheets in hand-feeding mode
  • Average monthly volume of 30k booklets
  • Max monthly volume of 40k booklets

User Friendly Interface

Our latest Graphical User Interface in­cludes a 7” touchscreen. Easy job setup and powerful adjustments such as fold and staple position, fold skew and more.

Graphical User Interface

Maintenance free staple heads

Spend less time worrying about maintenance and more time producing beautiful booklets.

High-wearing parts are built into the staple cartridge that is easy to replace.

booklet samples

Easy Hand-Feeding

The Uplift Module is used as an interface toward the print engine. It enables easy hand-feeding of sheets printed from other devices.

Compact Finishing Module

The new, optional, Finishing module combines square­folding and face trimming in a single, compact module. Face trim up to 231mm off sheets down to a smallest application format of 99mm.


Product photo of PL450e and PL435e

Specifications

PL450e / PL435e

Paper sizes - Inline mode
A5 SEF - SRA3
Paper sizes - Handfeed mode
145x210 mm - 320x660 mm
Finished book sizes - Inline mode
A6P - A4P
Finished book sizes - Handfeed mode
145x99 mm - 320x330 mm
Stock range
64gsm - 350gsm
(depending on media type)
Book thickness (folded with staples)
PL450e: 2-50 sheets (80gsm)
PL435e: 2-35 sheets (80gsm)
Book thickness (folded without staples)
Up to 2 sheets
Face trimmer range
2mm - 231mm
Compatibility
RISO Valezus T1200
