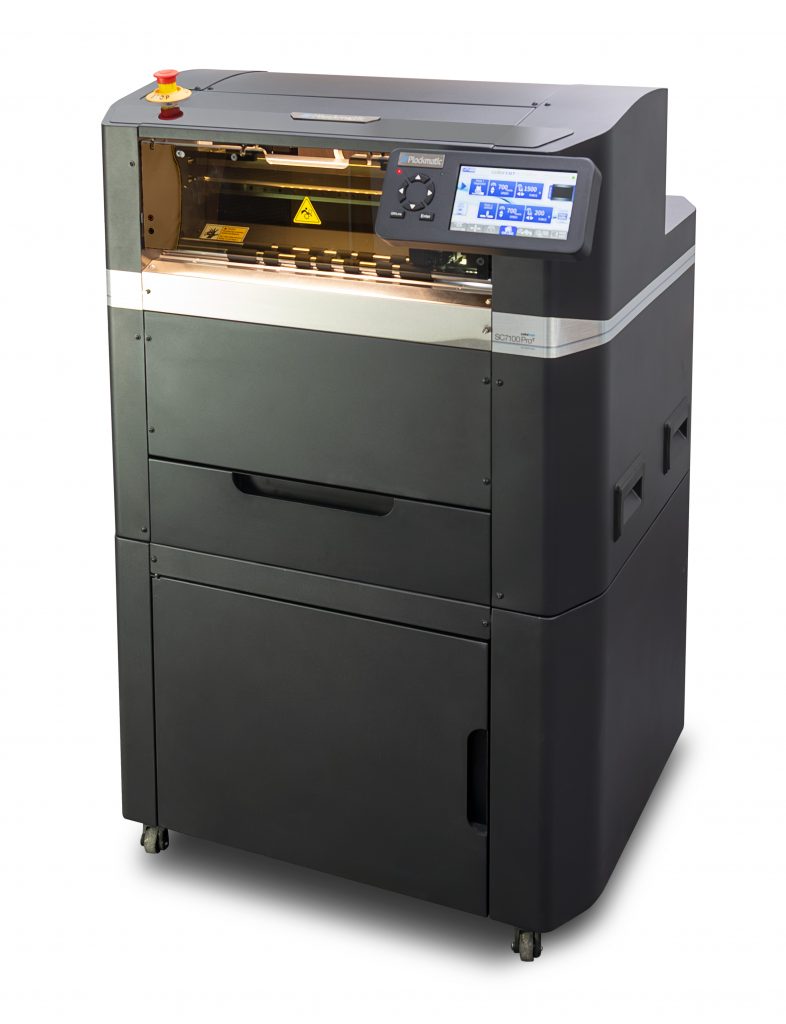

The ColorCut SC7100 Pro-T for Konica Minolta

Complete unattended cutting production with the ColorCut SC7100 Pro-T

Targeted for busy print departments, seeking an affordable, high-capacity device for complete unattended cutting production, the SC7100 combines ultra-reliable feeding with an instant job retrieval system and flawless high-speed cutting and creasing. This compact free-standing device is conveniently mobile and will be easily accommodated in any print shop.

Market leading features

• Digital process means no more costly dies or waiting time
• Auto feeder stacks up to 1,000 sheets. Up to 520 x 720mm and custom sizes – with self-centering function and air blade separation with extendable paper tray
• ColorCut Pro – Production Studio software included
• QR* code/Job Library retrieves associated cut files – even for mixed job batch sessions or rotated sheets
• SmartMark registration delivers incredible accuracy – enabled via included ColorCut Pro software
• Retractable media tray and integral media storage area

*QR codes and SmartMarks are generated as part of the included ColorCut Pro software plugin

Digitally cut-through any shape on up to 450 micron media, or kiss-cut sheet labels, all at up to 1060mm/sec.

• ColorCut Pro – Production Studio software included
  * QR codes and SmartMarks are generated as part of the included ColorCut
• Pro software plugin which integrates with vector artwork created in Adobe® Illustrator® and CorelDRAW®
• QR* code/Job Library retrieves associated cut files – even for mixed job batch sessions or rotated sheets SmartMark registration delivers incredible accuracy – enabled via included ColorCut Pro software

Complete standalone operation – even with a stack of mixed jobs

Complete standalone operation – even with a stack of mixed jobs

• • Dual tool head includes passive drag cut and active tangential crease tangential tools up to 2,500gf offers a wide range of media to be finished; FBB, card, papers, labels and synthetics
  • 9th generation Vision3 CCD camera reads and instantly retrieves cut fi les for every sheet on the fly. Accepts a mixed stack of jobs, cutting one after the other in a seamless and uninterrupted flow
  • Dual ‘Grip and Drive’ feed system holds media during cutting on both sides of the cutting head, enabling it to cut closer to media edges
  • Superior cutting strip delivers an optimal surface for both cut-through, creasing and kiss-cutting
  • SmartTags are left in the cut lines to retain the item in the sheet – leaving a tidy and manageable stack of finished sheets in the media catch tray
  • High-capacity auto feeder works in conjunction with air blade separation and automated jog function, to present every sheet perfectly for the cutter, every time
  • Standalone production offered with new HELD mode. Load jobs from a USB drive, view and auto scan to cut. This means that repetitive high volume jobs can be run easily without a connection to a computer – no skilled operators required!

High-capacity and ultra-reliable feeding

The ColorCut SC7100 Pro-T model has been designed to provide unattended operation with particular attention paid to the feeding system to ensure class-leading performance for card, vinyl labels or even tricky laminated sheets. The auto feeder accepts up to 1,000 sheets, which automatically raises and lowers as required.

To prevent sheets curling (as a result of a constant air flow to the sides), the machines use an automatic air blade that fires a blast of air momentarily into the front of the stack just as the advanced vacuum feed belt lowers to collect the top sheet. To further provide a reliable feed, the vacuum feed belt lifts the media carrying any sheets not pre-separated by the air blade past a pair of dexterous separation fingers which dislodges them. Finally, before advancing the sheet into the cutting engine, the vacuum feed belt ‘jogs’ briefly against the rear paper stop, creating a natural curve that helps ensure even difficult media feeds faultlessly.

Dual tool power – digital accuracy

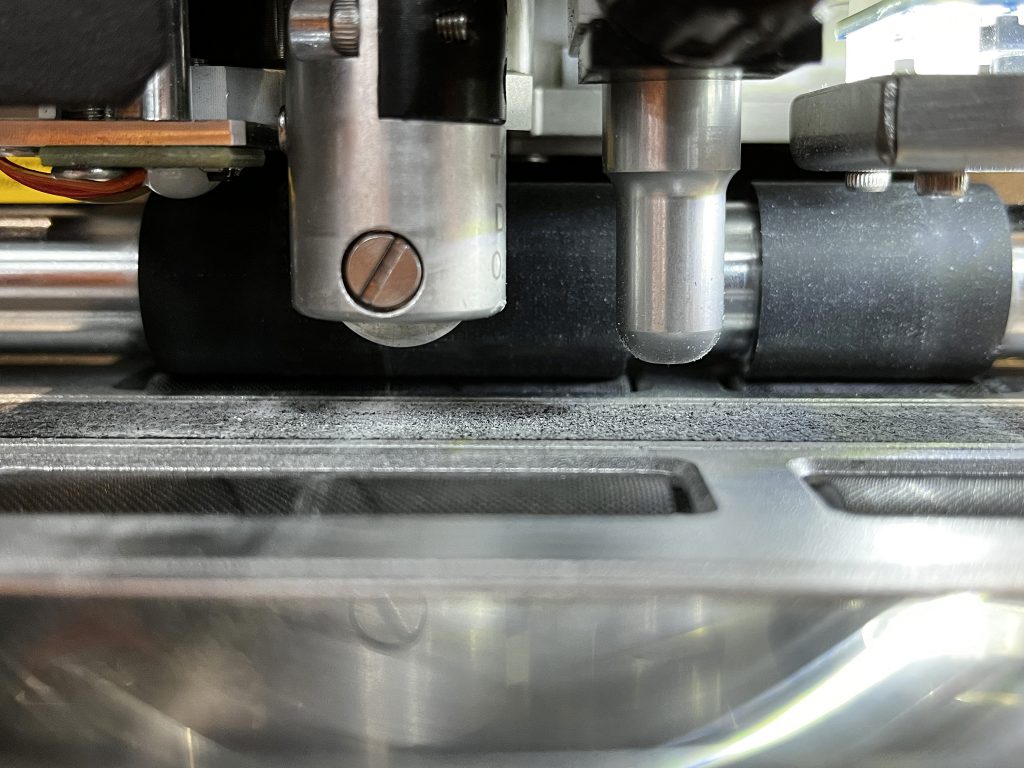

The digital dual tool head includes passive contour/drag cut, with active tangential creasing wheels and applies force, individually,
for both the cutting and creasing tools.

This combination of tools provides a much wider media handling capability and more defined, smoother crease for thick card up to 450 micron. The individual tool actions are controlled via the included ColorCut Pro 5 Production Studio software. In common with the entire ColorCut family, the tools can be set to apply exact amounts of pressure and speed, along with total control over the application of cut, crease, perforation or kiss-cut of vector artwork lines drawn in Adobe® Illustrator® or CorelDRAW®.

Tangential technology enables the SC7100 Pro-T models to lift the tool up from the media, rotate it and lower it back onto the media. Suitable for creasing wheels to enable more defined, smoother precise creases – particularly good for thicker media.

Ergonomic, compact and mobile

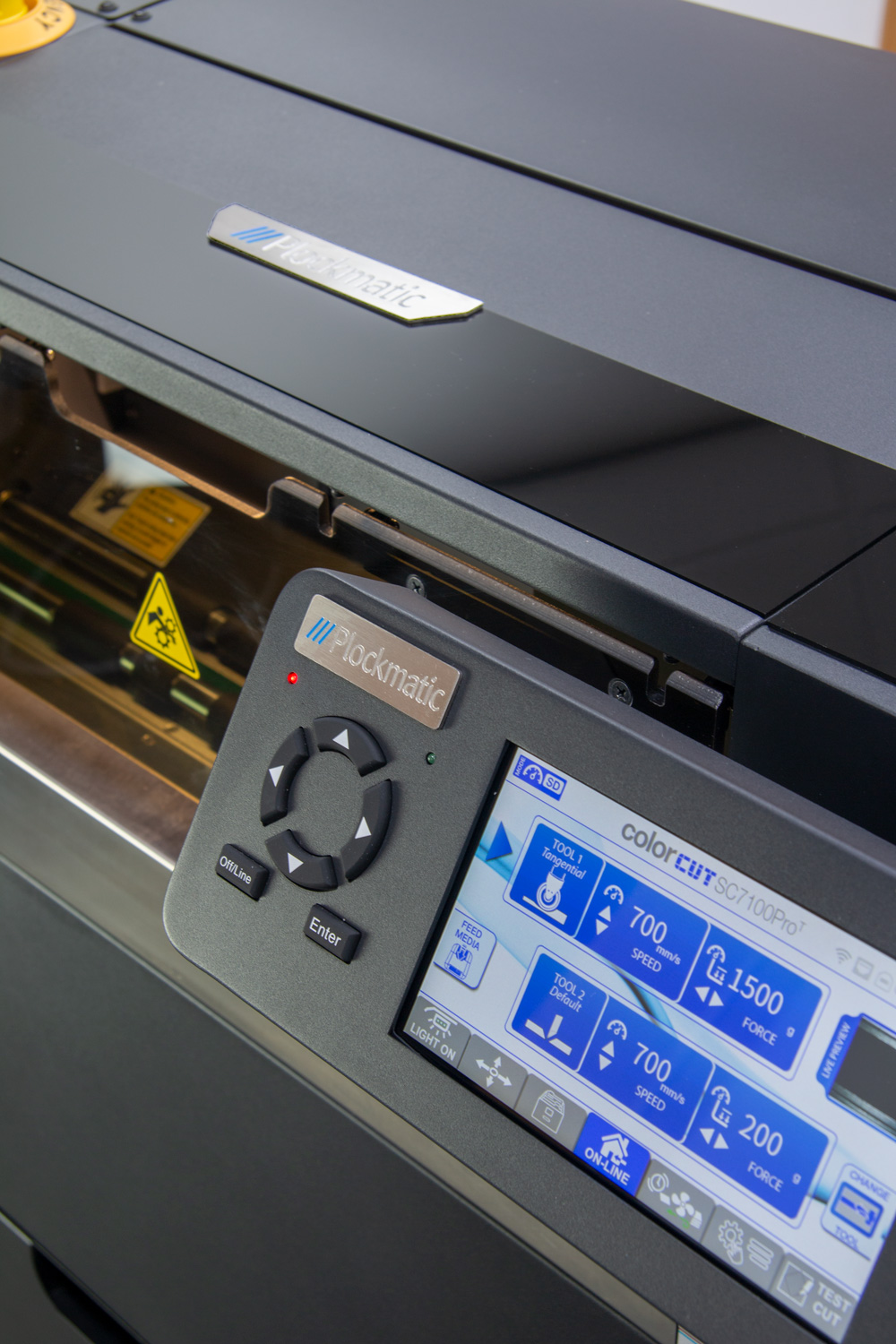

The new 7” immersive touch screen with extensive Info-Control system includes a live camera preview window delivering visual feedback of QR code and smart registration marks scanning.

Plus, feature rich options that provide an advanced level of control over the auto-feeder’s functionality. Useful for certain media that may require special handling or simply to optimise throughput of your chosen media. The 7 inch immersive touch screen control panel can pivot to suit the angle desired by the operator.

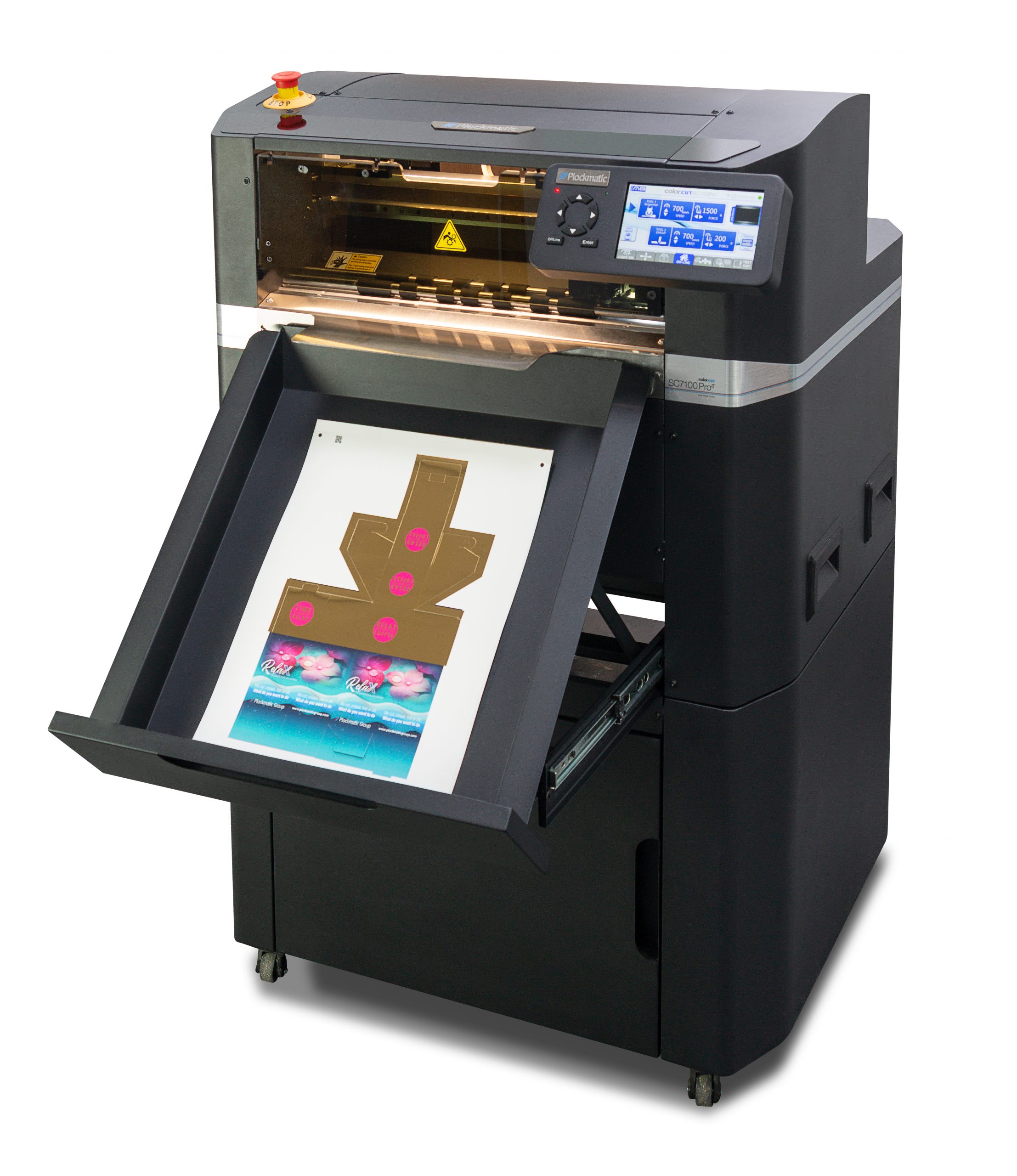

A space-saving media catch tray slides away when not in use and the maneuverable stand ensures it is easily accommodated into any working environment.
